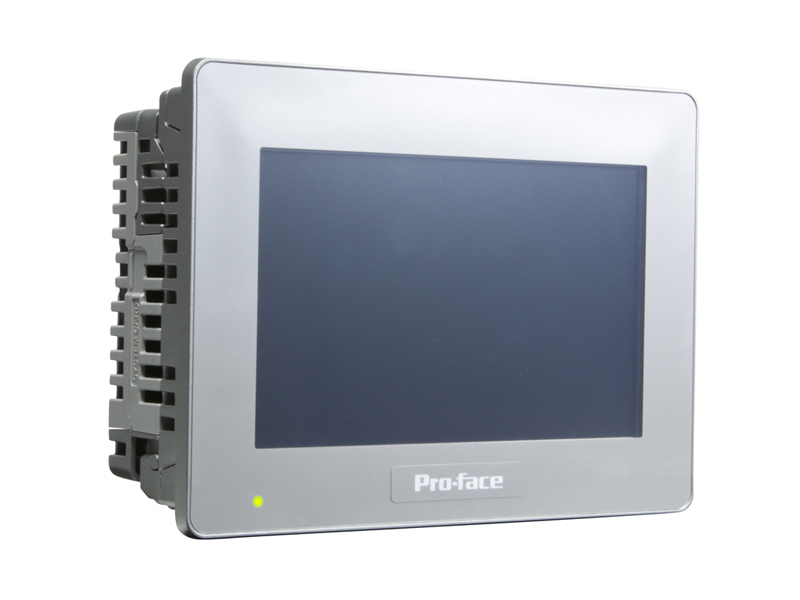

SP5400 Series, 7" Enhanced HMI Touchscreen
SP5000 Series Operator Interface
The SP5400 7” Enhanced HMI offers a WVGA Display TFT touch panel with 262,144 colors, a 12-24 Vdc input voltage, 0-60º operating temperature and is compatible with both the SP5B10 power box and the SP5B40 open box units.
Mix and match the modular box units with the display size of your choice. The SP5000 Series Enhanced HMI provides high performance for high demands.
Mix and match the modular box units with the display size of your choice. The SP5000 Series Enhanced HMI provides high performance for high demands.
Item # |
Resolution |
Graphics Display Resolution |
Display Type and Size |
Power Consumption |
Input Voltage |
CAD Drawings |
Supported Software |
|---|---|---|---|---|---|---|---|
| PFXSP5400WAD | Resolution N/A 800 x 480 pixels (WVGA) | Graphics Display Resolution N/A 262,000 colors | Display Type and Size N/A Wide TFT Color LCD (7 inch) | Power Consumption N/A <= 31.5W with box module, <= 6.5W w/o box module W | Input Voltage N/A 12-24 Vdc (limits 10.8 -29.9 Vdc) |
CAD Drawings
N/A
|
Supported Software N/A GP-Pro EX |
| PFXSP5400WADF0C | Resolution N/A 800 x 480 pixels (WVGA) | Graphics Display Resolution N/A 262,000 colors | Display Type and Size N/A Wide TFT Color LCD (7 inch) | Power Consumption N/A <= 31.5W with box module, <= 6.5W w/o box module W | Input Voltage N/A 12-24 Vdc (limits 10.8 -29.9 Vdc) |
CAD Drawings
N/A
|
Supported Software N/A GP-Pro EX |
