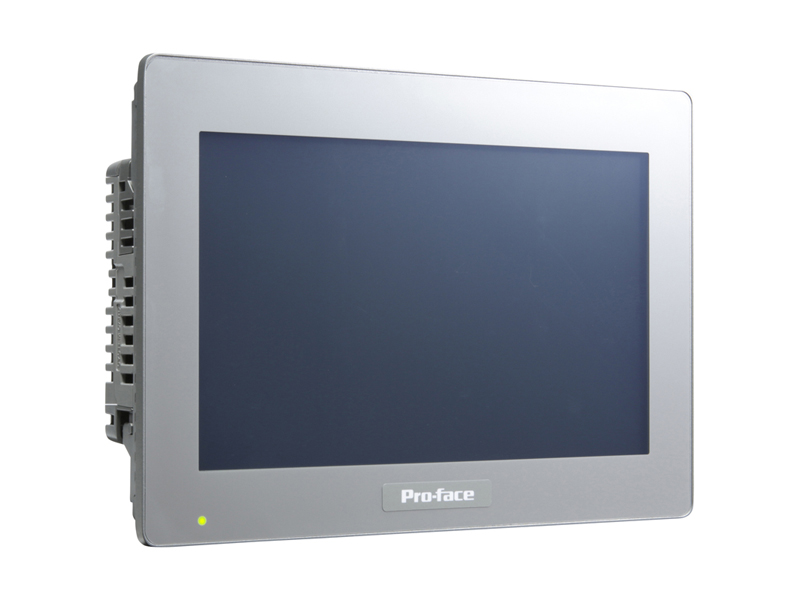

SP5500 Series, 10" Enhanced HMI Touchscreen, Wide TFT Color LCD
SP5000 Series Operator Interface
The SP5500 10” Enhanced HMI offers a SXGA or WXGA Display TFT touch panel with 16 million or 262,144 colors, a 12-24 Vdc input voltage, 0-60º operating temperature and is compatible with both the SP5B10 power box and the SP5B40 open box units.
Mix and match the modular box units with the display size of your choice. The SP5000 Series Enhanced HMI provides high performance for high demands.
Mix and match the modular box units with the display size of your choice. The SP5000 Series Enhanced HMI provides high performance for high demands.
Item # |
Resolution |
Graphics Display Resolution |
Display Type and Size |
Power Consumption |
Input Voltage |
CAD Drawings |
Supported Software |
|---|---|---|---|---|---|---|---|
| PFXSP5500WAD | Resolution N/A 1,280 x 800 pixels (WVGA) | Graphics Display Resolution N/A 262,000 colors | Display Type and Size N/A Wide TFT Color LCD (10.1 inch) | Power Consumption N/A <= 33.5W with box module, <= 8.5W w/o box module W | Input Voltage N/A 12-24 Vdc (limits 10.8 -29.9 Vdc) |
CAD Drawings
N/A
|
Supported Software N/A GP-Pro EX |
| PFXSP5500WADF0C | Resolution N/A 1,280 x 800 pixels (WVGA) | Graphics Display Resolution N/A 262,000 colors | Display Type and Size N/A Wide TFT Color LCD (10.1 inch) | Power Consumption N/A <= 33.5W with box module, <= 8.5W w/o box module W | Input Voltage N/A 12-24 Vdc (limits 10.8 -29.9 Vdc) |
CAD Drawings
N/A
|
Supported Software N/A GP-Pro EX |
