SP5000 Power Box
SP5000 Node Box HMI

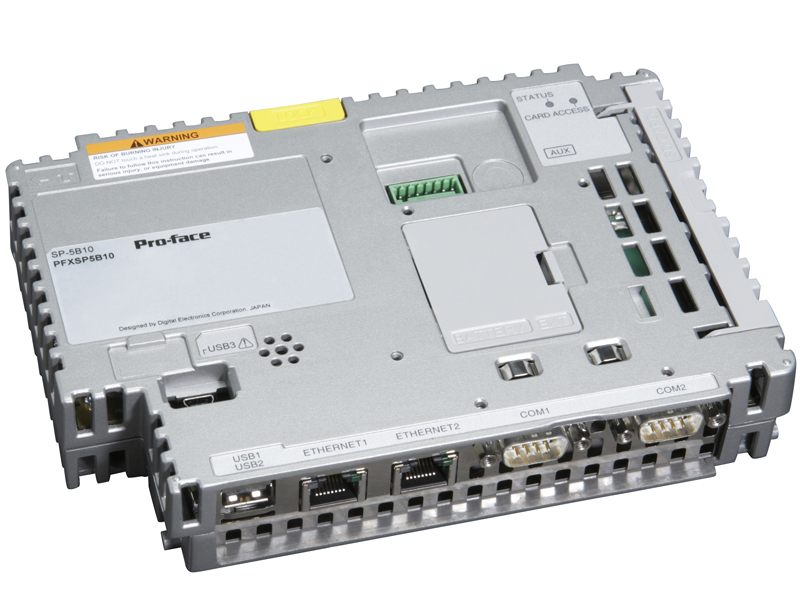

The SP5B10 Enhanced HMI Power Box module brings a new modular design to the SP5000 series allowing you to change screen size with an easy “snap on” installation. It is programmable with GP-Pro EX v4.0 (or newer), Pro-face’s premier HMI development software. With enhanced connectivity including two Ethernet ports, two COM ports, two Type A USB ports and one mini USB port it is a flexible and powerful addition to the Pro-face family. The SP5B10 box achieves high-speed processing and fast display.
Mix and match the modular box units with the display size of your choice. The SP5000 Series Enhanced HMI provides high performance for high demands.
Mix and match the modular box units with the display size of your choice. The SP5000 Series Enhanced HMI provides high performance for high demands.
Item # |
Serial |
USB |
Input Voltage |
Power Consumption |
Certifications |
CAD Drawings |
Supported Software |
|---|---|---|---|---|---|---|---|
| PFXSP5B10F0C | Serial N/A COM1: RS-232C/422/485, COM 2: RS-232C/422/485 | USB N/A 2 Type-A and 1 mini-B | Input Voltage N/A 12Vdc (Supply from Display Module) | Power Consumption N/A <= 25W powering USB devices, = 12.5W w/o USB devices | Certifications N/A UL508, UL/c-UL, CSA C22.2 No142, CE, RoHS, GOST-R, KC |
CAD Drawings
N/A
|
Supported Software N/A GP-Pro EX |
| PFXSP5B10 | Serial N/A COM1: RS-232C/422/485, COM 2: RS-232C/422/485 | USB N/A 2 Type-A and 1 mini-B | Input Voltage N/A 12Vdc (Supply from Display Module) | Power Consumption N/A <= 25W powering USB devices, = 12.5W w/o USB devices | Certifications N/A UL508, UL/c-UL, CSA C22.2 No142, CE, RoHS, GOST-R, KC |
CAD Drawings
N/A
|
Supported Software N/A GP-Pro EX |
