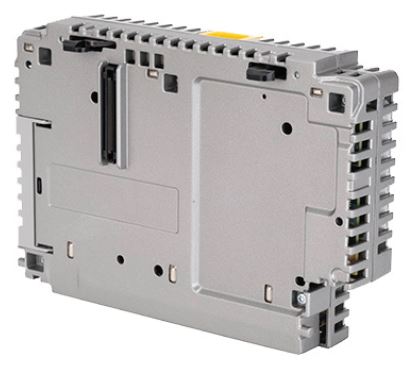

SP5000X Series eXtreme Box Outdoor use, Rugged, Coated, Ethernet I/F x 2, COM I/F x 2, USB A I/F x 2, USB mini-B I/F, SD Card I/F x 2, AUX I/F, Expansion Unit I/F
Unit of Measure
Performance Specifications
Application Memory |
N/A On board Flash (1 GB) |
Backup Memory |
N/A NVRAM 512 KB |
Interfaces Serial COM1 |
N/A RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 (1,200) to 115,200 bps, Connector: D-Sub 9 pin (plug) |
Interfaces Serial COM2 |
N/A RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 (1,200) to 115,200 bps, Connector: D-Sub 9 pin (plug) |
Interfaces Ethernet |
N/A Standard: IEEE802.3i/IEEE802.3u/IEEE802.3ab, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 2 |
Interfaces USB |
N/A Type A (V2.0) x2, Mini B (V2.0) x1 |
Interfaces SD Card |
N/A SD Card slot (System) x 1 SD Card slot (Storage) x 1 |
Interfaces Sound Output |
N/A Speaker Output: 300mW (Rated Load: 8O, Frequency: 1kHz) (Software Switch), LINE Output: Rated load: 10kO or more (Software Switch), Connector: 2-piece terminal block (AUX) x 1 |
Interfaces AUX Output |
N/A Alarm output/Buzzer output, Rated voltage 24Vdc, Rated current, 50 mA, Connector 2-piece terminal block (AUX) x1 |
General Specifications
Input Voltage |
N/A 12 V |
Power Consumption |
N/A 20 W |
Cooling Method |
N/A Natural air circulation |
Weight |
N/A 0.9 kg1.98 lb |
External Length |
N/A 1.77 in45 mm |
External Depth |
N/A 7.4 in188 mm |
External Height |
N/A 5.16 in131 mm |
Warranty |
N/A Two (2) years |
Specifications
Power |
N/A DC |
Address |
N/A Proface America, 1050 Highland Drive, Suite D, Ann Arbor, MI, 48108, 734-477-0600 |
Supported Software |
N/A GP-Pro EX |
Display Size |
N/A No Display |
Communications |
N/A Ethernet Serial USB |
Screen Type |
N/A No Display |
Handheld Configuration |
N/A No |
Accessories
Accessories |
N/A
FP-US00, USB Cable (5 m) (QUOTE) PFXEXEDLS40A, GP-Pro EX HMI Development Software (QUOTE) PFXZCBCLUSA1, USB Clamp Type A (QUOTE) PFXZCHEUCAM1, CANopen Master Unit (QUOTE) |
