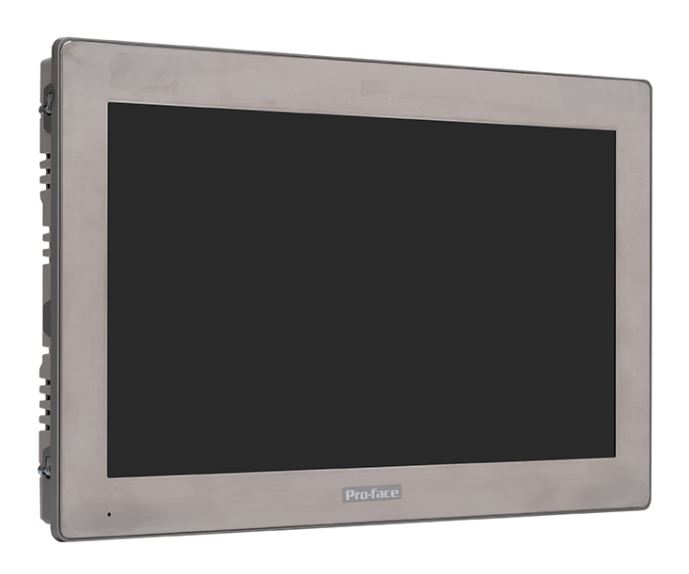

FWXGA Display TFT Touch Panel
262,144 colors
Class 1 Div 2, Groups A, B, C, and D
IP66F Front Panel (with proper panel install)
Easily combine with SP-5B90 eXtreme Box
Conformal Coated
Sunlight Readable and Anti-glare Surface
UV Resistive (Front Side)
Unit of Measure
Performance Specifications
Display Type |
N/A TFT Color LCD 15” wide |
Display Size |
N/A 15" |
Graphics Display Resolution |
N/A 1,366 x 768 pixels (FWXGA) |
Display Colors |
N/A 262,144 colors |
Effective Display Area |
N/A 344.2 x 193.5 mm [13.55 x 7.62 in] |
Touch Screen |
N/A Analog resistive |
Backlight |
N/A LEDLife span>50,000 h 25 °C (77 °F) |
Brightness |
N/A 1000 cd/m2 (typ.) or 1000 NITs |
General Specifications
Rated Input Voltage |
N/A 12 - 24 Vdc |
Input Voltage Limits |
N/A 10.8 to 28.8 Vdc |
Voltage Drop |
N/A 12 Vdc: 1.25 ms or less, 24 Vdc: 5 ms or less |
In-Rush Current |
N/A 30 A or less |
Voltage Endurance |
N/A 1,000 Vac, 20 mA for 1 minute (between charging and FG terminals) |
Insullation Resistance |
N/A 500 Vdc, 10 MQ or more (between charging and FG terminals) |
Power Consumption |
N/A 48 W (max), 34W or less (When power is not supplied to external devices), 12.5W or less (When screen turns off the backlight (Standby Mode)) 19 W or less (When screen backlight 20%) |
Ambient Air Temperature |
N/A -20 to 60 °C (-4 to 140 °F) When installing and wiring: -5 to 60 °C (23 to 140 °F) |
Storage Temperature Range |
N/A -20 to 60 °C [-4 to 140 °F] |
Certifications |
N/A UL 61010-2-201 and CSA C22.2 No61010-2-201, ANSI/ISA 12.12.01 and CSA C22.2 No213, Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations, IECEx / ATEX for use in zones 2/22, EN60079-0 EN60079-15, EN60079-31 EAC, CE, AS/NZS C |
Structure |
N/A IP66F, IP67F, Type 4X (indoor and outdoor use), Type 12, Type13 *5 * on the front panel when properly installed in an enclosure. |
Surrounding Air and Storage Humidity |
N/A 10% - 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less) |
Dust |
N/A 0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels) |
Pollution Degree |
N/A 3 for front face, 2 for other sides |
Corrosive Gas |
N/A IEC/EN 60721-3-3 Class 3C3 |
Atmospheric Pressure (Operating Altitude) |
N/A 800 to 1,114 hPa (2,000 m [6,561 ft] or lower) |
UV resistance (Front Side) |
N/A Cutoff: 99% or more (380 nm) GeneralCutoff: 99% or more (380 nm) |
Vibration and Shock Resistance |
N/A IEC 60068-2-6 compliant 5 to 9 Hz Single amplitude 3.5 mm (0.14 in) 9 to 150 Hz Fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approximately 100 minutes) IEC 61373: 1999 (Category 1, Class B) 5=f=150 Hz (weight < 500 kg: f1=5 Hz, f2=150 Hz |
Electrostatic Discharge Immunity |
N/A Contact discharge method: 6 kV Air discharge method: 8 kV(IEC/EN 61000-4-2 Level 3) |
Electronic Fast Transient/Burst Immunity |
N/A IEC 61000-4-4, 2 kV: Power port, 1 kV: Signal ports |
Weight |
N/A 4.8 kg10.6 lb |

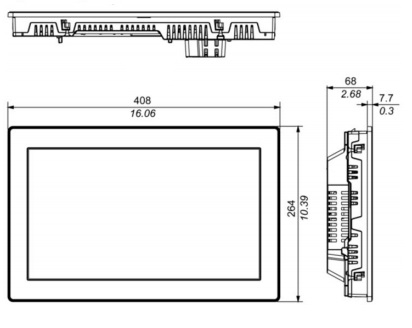

External Width |
N/A 16.06 in408 mm |
External Height |
N/A 10.39 in264 mm |
External Length |
N/A 2.68 in68 mm |
Panel Cut Width |
N/A 15.51 in394 mm |
Panel Cut Height |
N/A 9.84 in250 mm |
Warranty |
N/A Two (2) years |
Accessories
Accessories |
N/A
CA7-ACCNL-01, DC Power Supply Connector with fixable screws (QUOTE) PFXEXEDLS40A, GP-Pro EX HMI Development Software (QUOTE) PFXZCHCNDC3, DC Power Supply Connector with fixable screws (Angle type) (QUOTE) PFXZCHWG154, 15-inch Wide Installation Gasket (QUOTE) |
