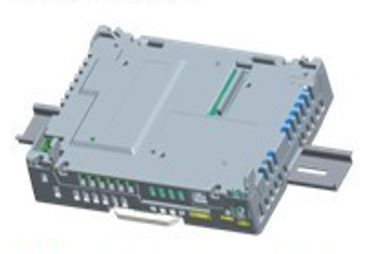

This SP5000 Series option is a high-function data-collecting device with two serial ports, three Ethernet ports, one SD card or CFast card slot, and two or more USB ports. Ideal for complex system or multi-equipment data collection.
Unit of Measure
Specifications
SD Card |
N/A Push the switch to eject the SD memory card, used for storage |
Ethernet |
N/A Ethernet transmission interface (10BASET/100BASE-TX) Connector: Modular jack (RJ-45) x 1 |
General Specifications
Input Voltage [Max] |
N/A 28.8 V |
Input Voltage [Min] |
N/A 10.8 V |
Input Voltage |
N/A 12 to 24 V |
Power Consumption |
N/A 2.0 to 37 W |
Cooling Method |
N/A Natural air circulation |
Ambient Temperature [Min] |
N/A -20 ºC-4 ºF |
Ambient Temperature [Max] |
N/A 60 ºC140 ºF |
Surrounding Air/Operating Temperature |
N/A 0-60 °C (32-140 °F) |
Ambient/Storage Humidity |
N/A 10-90% RH (non-condensing, wet bulb temperature 39 °C [102.2 °F] or less) |
Dust |
N/A 0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels) |
Pollution Degree |
N/A For use in pollution degree 2 environment |
Corrosive Gas |
N/A Free of corrosive gases |
Operating Atmosphere |
N/A 800-1,114 hpa (2,000 m [6,561 ft] or lower) |
Noise Immunity |
N/A Noise voltage: 1,000 Vp-p Pulse duration: 1 µs Rise time: 1 ns(via noise simulator) |
Electrostatic Discharge Immunity |
N/A Contact discharge method: 6 kV (IEC/EN 61000- 4-2 Level 3) |
Total Width |
N/A 7.44 in189 mm |
Total Height |
N/A 5.28 in134 mm |
Total Length |
N/A 1.42 in36 mm |
Weight |
N/A 0.75 kg1.65 lb |
