Advanced Box Unit with Core i5 processor.
Unit of Measure
Performance Specifications
Box Unit Options |
N/A Advanced Box |
CPU |
N/A Core™ i5 |
Graphic Accelerator |
N/A Intel UHD Graphics 620 |
Supported OS |
N/A Windows10 IoT Enterprise 2019 LTSC (64bit) |
Main Memory |
N/A 260-pin SO-DIMM socket x 2, DDR4 - 2400 (Up to 16 GB/socket, up to 32 GB for 2 sockets) |
Interface Specification
Serial (COM) |
N/A RS-232C (not isolated) x 1, 7 or 8 bits, 1 or 2 bits, None, odd or even, D-Sub 9–pin (plug) |
Ethernet (LAN) |
N/A IEEE1588, 10 BASE-T/ 100 BASE-TX/ 1000BASE-T, Wake-on-LAN (WOL) supported*4 Modular jack (RJ-45) x 2 |
USB |
N/A USB TypeA: USB2.0 x2, USB3.0 x2 USB TypeC: USB3.0 x1 (DP connection) |
Expansion Slot |
N/A PCI x 1 + PCIe x 1, PCIe x 2 or PCI x 2 PCI card size: Short size PCIe card size: Half length PCI slot: Revision 3.0, 32 bit bus, 3.3 Vdc PCIe slot: Revision 3.0, 1 lane (x1) PCIe connecter: 4 lanes (x4), edgeless |
General Specifications
Rated Input Voltage - DC Model |
N/A 12-24 Vdc ±20 % |
Rated Input Voltage - AC Model |
N/A 100 to 240 Vac |
Input Voltage Limits - DC Model |
N/A 18 to 31.2 Vdc |
Input Voltage Limits - AC Model |
N/A 85 to 264 Vac |
Voltage Drop - DC Model |
N/A 5 ms or less |
Voltage Drop - AC Model |
N/A 20 ms or less |
Power Consumption - DC Model |
N/A 56 W When power is not supplied to external devices (Max 121 W) |
Power Consumption - AC Model |
N/A 67 VA When power is not supplied to external devices (Max 140 VA) |
In-Rush Current |
N/A 30 A or less |
Storage Temperature Range |
N/A -30 to 70 °C (-22 to 158 °F) - Box Type, -20 to 60 °C (-4 to 140 °F) - Panel Type |
Certifications |
N/A UL 61010-2-201, cUL, Class 1 Division 2 Groups A, B, C and D Programmable Controllers for use in HazLoc, and CSA C22.2 °61010-2-201, CE, RCM, RoHS, REACH, KC, WEEE |
Ambient Air Temperature |
N/A Panel (Landscape) mounting: 0 to 55 °C (32 to 131 °F) with/without FAN kit (for 19” Wide, 0 to 50 °C (32 to 122 °F) with/without FAN kit), Panel (Portrait) mounting: 0 to 50 °C (32 to 122 °F) with/without FAN kit |
Ambient/Storage Humidity |
N/A 10 to 90% RH (non condensing, wet bulb temperature 39 °C [102.2 °F] or less) |
Grounding |
N/A DC model: Functional grounding: Grounding resistance of 100 O or less, 2 mm2(AWG 14) or thicker wire, or your country's applicable standard (SG and FG are connected inside the product) AC model: Protective grounding:Grounding resistance of 100 O or less, |
Pollution Degree |
N/A For use in pollution degree 2 environment |
Air Pressure (Altitude Range) |
N/A 800 to 1,114 hPa (2,000 m [6,561 ft] or lower) |
Vibration Resistance |
N/A IEC/EN 61131-2 compliant 5 to 9 Hz Single amplitude 3.5 mm (0.14 in) 9 to 150 Hz Fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approximately 100 minutes) |
Structure |
N/A IP66F, IP67F, UL 50/50E,Type 1, Type 4X (indoor use only),Type 12,Type 13 NOTE:On the front panel when properl yinstalled in an enclosure. |
Weight |
N/A 3.5 kg7.72 lb |

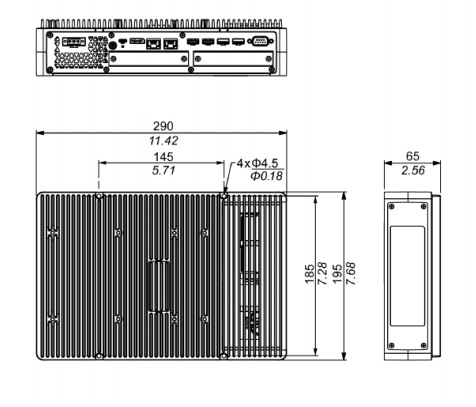

External Width |
N/A 11.42 in290 mm |
External Height |
N/A 7.68 in195 mm |
External Length |
N/A 2.56 in65 mm |
Accessories
Accessories |
N/A
CA7-ACCNL-01, DC Power Supply Connector with fixable screws (QUOTE) PFXBOSRT1KA, BLUE Open Studio (QUOTE) PFXZCCNAC1, Power connector (AC) (QUOTE) |
