12" Industrial PC Display compatble with multiple box units, including those with Core i7, Corei5, Corei3, and Celeron processors.
Unit of Measure
Performance Specifications
Display Type |
N/A TFT Color LCD |
Display Size |
N/A 12.1" |
Graphics Display Resolution |
N/A XGA TFT (1,024 x 768 pixels) |
Display Colors |
N/A 16 million colors |
Touch Panel |
N/A Resistive Mulit-touch (2 points) |
Panel Resolution |
N/A 2,048 x 2,048 |
CPU |
N/A Core™ i3 |
Graphic Accelerator |
N/A Intel® UHD Graphics 620 (built in CPU) |
Supported OS |
N/A Windows10 IoT Enterprise 2019 LTSC (64bit) |
Main Memory |
N/A 260-pin SODIMM socket x 2, DDR4-2400 (Up to 16 GB/socket, up to 32 GB for 2 sockets) |
Interface Specification
Serial (COM) |
N/A RS-232C (not isolated) x 1, 7 or 8 bits, 1 or 2 bits, None, odd or even, D-Sub 9–pin (plug) |
Ethernet (LAN) |
N/A IEEE1588, 10 BASE-T/ 100 BASE-TX/ 1000BASE-T, Wake-on-LAN (WOL) supported*4 Modular jack (RJ-45) x 2 |
USB |
N/A USB TypeA: USB2.0 x2, USB3.0 x2 USB TypeC: USB3.0 x1 (DP connection) |
Expansion Slot |
N/A PCI x 1 + PCIe x 1, PCIe x 2 or PCI x 2 PCI card size: Short size PCIe card size: Half length PCI slot: Revision 3.0, 32 bit bus, 3.3 Vdc PCIe slot: Revision 3.0, 1 lane (x1) PCIe connecter: 4 lanes (x4), edgeless |
General Specifications
Rated Input Voltage - DC Model |
N/A 12-24 Vdc ±20 % |
Rated Input Voltage - AC Model |
N/A 100 to 240 Vac |
Input Voltage Limits - DC Model |
N/A 18 to 31.2 Vdc |
Input Voltage Limits - AC Model |
N/A 85 to 264 Vac |
Voltage Drop - DC Model |
N/A 5 ms or less |
Voltage Drop - AC Model |
N/A 20 ms or less |
Power Consumption - DC Model |
N/A Panel Unit Only: 50 W When power is not supplied to external devices (Max 68 W) Box Unit Only: 39 W When power is not supplied to external devices (Max 87 W) |
Power Consumption - AC Model |
N/A Panel Unit Only: 77 VA When power is not supplied to external devices (Max 58 VA) Box Unit Only: 48 VA When power is not supplied to external devices (Max 99 VA) |
In-Rush Current |
N/A 30 A or less |
Storage Temperature Range |
N/A -30 to 70 °C (-22 to 158 °F) - Box Type, -20 to 60 °C (-4 to 140 °F) - Panel Type |
Certifications |
N/A UL 61010-2-201 and CSA C22.2 N°61010-2-201, CE, RCM, RoHS, REACH, KC, WEEE |
Ambient Air Temperature |
N/A Panel (Landscape) mounting: 0 to 55 °C (32 to 131 °F) (for 19” Wide, 0 to 50 °C (32 to 122 °F)) Panel (Portrait) mounting: 0 to 50 °C (32 to 122 °F) |
Ambient/Storage Humidity |
N/A 10 to 90% RH (non condensing, wet bulb temperature 39 °C [102.2 °F] or less) |
Pollution Degree |
N/A For use in pollution degree 2 environment |
Cooling Method |
N/A Natural air circulation |
Air Pressure (Altitude Range) |
N/A 800 to 1,114 hPa (2,000 m [6,561 ft] or lower) |
Vibration Resistance |
N/A IEC/EN 61131-2 compliant 5...9 Hz Single amplitude 3.5 mm (0.14 in) 9...150 Hz Fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approximately 100 minutes) |
Structure |
N/A When using a factory-installed front USB cover: IP65F, IP67F, Type 1 When using a front USB cover with screw (PFXZCDCVUS1): IP66F, IP67F, Type 1, Type 4X (indoor use only), Type 12, Type 13 |
Weight |
N/A 4.9 kg10.8 lb |

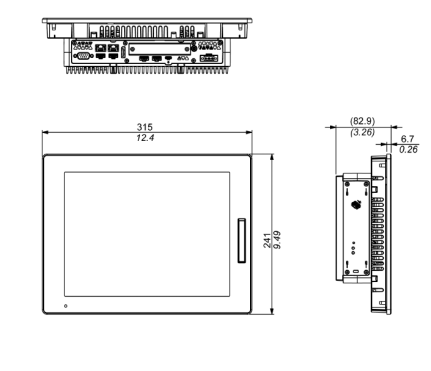

External Width |
N/A 12.4 in315 mm |
External Height |
N/A 9.49 in241 mm |
External Length |
N/A 3.26 in82.9 mm |
Panel Cut-Out Width |
N/A 11.87 in301.5 mm |
Panel Cut-Out Height |
N/A 8.96 in227.5 mm |
Warranty |
N/A Two (2) years |
Accessories
Accessories |
N/A
CA7-ACCNL-01, DC Power Supply Connector with fixable screws (QUOTE) CA7-DFS12-01, 12.1-inch Screen Protection Sheet (QUOTE) PFXBOSRT1KA, BLUE Open Studio (QUOTE) PFXZCCNAC1, Power connector (AC) (QUOTE) |
