15" Wide Screen Flat Panel Monitor, TFT Color LCD, 24 Vdc
Unit of Measure

Performance Specifications

Display Type

 N/A 15.6” TFT Color LCD

Display Size

 N/A 15"

Graphics Display Resolution

 N/A 1,366 x 768 (FWXGA)

Display Colors

 N/A 16 million colors

Touch Panel

 N/A Projected capacitive with optimized noise filter multi-touch (two-point touch)

Effective Display Area

 N/A 344.23 x 193.54 mm (13.55 x 7.62 in)

Backlight

 N/A White LED (Not user replaceable. When replacement is required, contact your local distributor.)

Backlight Service Life

 N/A 50,000 hours or more (continuous operation at 25oC [77o F] before backlight brightness decreases to 50%)

Video Interface

 N/A DVI (Digital signal) 5M, Connector: DVI-D 24 pin (socket) x 1

USB (Type B)

 N/A USB 2.0 (Type B) x 1

General Specifications

Rated Input Voltage

 N/A 24Vdc

Voltage Drop

 N/A 10 ms or less

Voltage Endurance

 N/A 1,000 Vac for 1 minute (between charging and FG terminals)

Insulation Resistance

 N/A 500 Vdc, 10 MO or more (between charging and FG terminals)

Certifications

 N/A UL 61010-2-201 and CSA C22.2 N°61010-2-201, CE, KC, RCM, RoHS, Haz Loc Class 1, Div2*1, ATEX/IECEx Zone 2/22*1, DNV-GL

Storage Temperature

 N/A -20 to 60 ºC-4 to 140 ºF

Surrounding Air and Storage Humidity

 N/A 10% to 90% RH (non-condensing, wet bulb temperature 39 oF, [102.2 oF or less]) General

Dust

 N/A 0.1mg/m3 (10-7 oz/ft3) or less (non-conductive levels)

Noise Immunity

 N/A Noise voltage: 1,000 Vp-p, Pulse duration: 1 µs, Rise time: 1 ns, (via noise simulator)

Grounding

 N/A Functional grounding: Grounding resistance of 100 Ohm, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).

Electrostatice Discharge Immunity

 N/A Contact discharge method: 6 kV (IEC/EN 61000-4-2 Level 3)

Vibration Resistance

 N/A IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm (0.14 in), 9 to 150 Hz fixed acceleration: 9.8 m/s2, X, Y, Z directions for 10 cycles (approx. 100 min.)

Weight

 N/A 5.3 kg11.9 lb

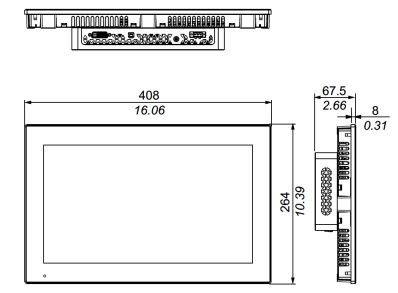

External Width

 N/A 16.06 in408 mm

External Height

 N/A 10.39 in264 mm

External Length

 N/A 2.66 in67.5 mm

Panel Cut-Out Width

 N/A 15.51 in394 mm

Panel Cut-Out Height

 N/A 9.84 in250 mm

Panel Thickness Area

 N/A 0.06 to 0.2 in1.6 to 5 mm

Warranty

 N/A Two (2) years

Accessories

Accessories

 N/A , USB Cable (5 m) (QUOTE)
, DP-DVI Cable (5m) (QUOTE)
, Anti-glare sheet for 15" Wide (QUOTE)
, Enhanced front USB cover (QUOTE)
