12" Flat Panel Monitor, TFT Color LCD, 24 Vdc
Unit of Measure
Performance Specifications
Display Type |
N/A 12.4” TFT Color LCD |
Display Size |
N/A 12" |
Graphics Display Resolution |
N/A 1,024 x 768 pixels (XGA) |
Display Colors |
N/A 16 million colors |
Touch Panel |
N/A Resistive (analog) multi-touch (two-point touch) |
Effective Display Area |
N/A 245.76 x 184.32 mm (9.68 x 7.26 in) |
Backlight |
N/A White LED (Not user replaceable. When replacement is required, contact your local distributor.) |
Backlight Service Life |
N/A 50,000 hours or more (continuous operation at 25oC [77o F] before backlight brightness decreases to 50%) |
Video Interface |
N/A DVI (Digital signal) 5M, Connector: DVI-D 24 pin (socket) x 1 |
USB (Type A) |
N/A USB 2.0 (Type A) x 1 |
USB (Type B) |
N/A USB 2.0 (Type B) x 1 |
General Specifications
Rated Input Voltage |
N/A 24Vdc |
Voltage Drop |
N/A 10 ms or less |
Voltage Endurance |
N/A 1,000 Vac for 1 minute (between charging and FG terminals) |
Insulation Resistance |
N/A 500 Vdc, 10 MO or more (between charging and FG terminals) |
Certifications |
N/A UL 61010-2-201 and CSA C22.2 N°61010-2-201, CE, KC, RCM, RoHS, Haz Loc Class 1, Div2*1, ATEX/IECEx Zone 2/22*1, DNV-GL |
Storage Temperature |
N/A -20 to 60 ºC-4 to 140 ºF |
Surrounding Air and Storage Humidity |
N/A 10% to 90% RH (non-condensing, wet bulb temperature 39 oF, [102.2 oF or less]) General |
Dust |
N/A 0.1mg/m3 (10-7 oz/ft3) or less (non-conductive levels) |
Noise Immunity |
N/A Noise voltage: 1,000 Vp-p, Pulse duration: 1 µs, Rise time: 1 ns, (via noise simulator) |
Grounding |
N/A Functional grounding: Grounding resistance of 100 Ohm, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals). |
Electrostatice Discharge Immunity |
N/A Contact discharge method: 6 kV (IEC/EN 61000-4-2 Level 3) |
Vibration Resistance |
N/A IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm (0.14 in), 9 to 150 Hz fixed acceleration: 9.8 m/s2, X, Y, Z directions for 10 cycles (approx. 100 min.) |
Weight |
N/A 3.6 kg8.0 lb |

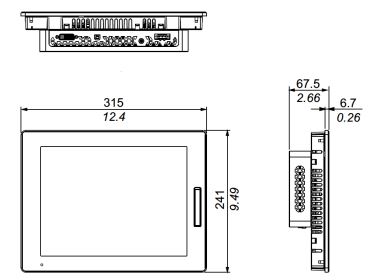

External Width |
N/A 12.4 in315 mm |
External Height |
N/A 9.49 in241 mm |
External Length |
N/A 2.66 in67.5 mm |
Panel Cut-Out Width |
N/A 11.87 in301.5 mm |
Panel Cut-Out Height |
N/A 8.96 in227.5 mm |
Panel Thickness Area |
N/A 0.06 to 0.2 in1.6 to 5 mm |
Warranty |
N/A Two (2) years |
