This 10.4 inch dedicated operator interface touch screen is ideal for OEMs and high graphical detail applications. The GP-4501T is part of a latest line of Pro-face brand operator interfaces. The bright, crisp, and clear VGA display of this model is complemented with a large viewing area, and your choice of Matrix Touch Panel or No Grid Analog for Improved Visibility and Precise Part Placement.
A host of features include SD Card, Ethernet, USB, and RS232, 422, 485 serial ports. The GP-4501T's extensive network connectivity allows support of up to four simultaneous protocols making the GP-4501T a highly versatile operator interface.
A host of features include SD Card, Ethernet, USB, and RS232, 422, 485 serial ports. The GP-4501T's extensive network connectivity allows support of up to four simultaneous protocols making the GP-4501T a highly versatile operator interface.
Unit of Measure
Specifications
Graphic Display Dot |
N/A 640 x 480 pixels (VGA) |
Display Type and Size |
N/A TFT Color LCD (10.4 inch) |
Display Colors |
N/A 65,536 Colors (No blink)/16,384 Colors (Blink) |
Display Area |
N/A W211.2 x H158.4 mm [W8.31 x H6.24 in.] |
Touch Screen |
N/A Resistive film analog 1024 x 1024 resolution |
USB |
N/A 1 Type-A and 1 mini-B |
SD Card |
N/A SD Card slot x 1 (maximum 32 GB SD/SDHC Card) |
Serial |
N/A COM1: RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: None, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps,(COM2: 187.5kbps (MPI)), Connector: D-Sub9 (plug) |
Ethernet |
N/A Ethernet IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX |
Backlight |
N/A White LED (User nonreplaceable parts. When replacement is required, contact your local |
Brightness Control |
N/A 8 levels of adjustment available via touch panel or the software |
Programming Memory |
N/A 16MB FEPROM (GP-Pro EX V3.0 or later) |
Backup memory |
N/A 128kb SRAM with battery backup |
Input Voltage |
N/A 24VDC ± 4.8 |
Power Consumption |
N/A <= 17W |
Ambient Operating Temp |
N/A 0 to 50 °C (32 to 122 °F) |
Storage Temperature |
N/A -20 to 60 °C [-4 to 140 °F] |
Altitude Endurance |
N/A 800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less) |
Certifications |
N/A CE, UL Listed Cl 1 Div 2 (Cl 1 Div 2 is only available on Rev. C units), RoHS, ABS (American Bureau of Shipping), DNV (Norway – Marine) |
Ambient/Storage Humidity |
N/A 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.) |
Noise Immunity |
N/A Noise Voltage: 1,500 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator) |
Cooling Method |
N/A Natural air circulation |
Electrostatic Discharge Immunity |
N/A Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3) |
Vibration Resistance |
N/A IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min) |
Shock During Operation |
N/A IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times |

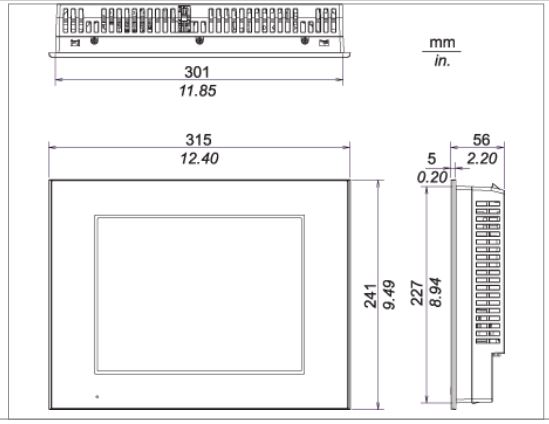

Width |
N/A 12.4 in315 mm |
Height |
N/A 9.49 in241 mm |
Depth |
N/A 2.2 in56 mm |
Communications |
N/A Ethernet USB |
Screen Type |
N/A TFT Color LCD |
Handheld Configuration |
N/A No |
Display Type |
N/A TFT Color LCD |
Power Supply |
N/A DC |
Address |
N/A Proface America, 1050 Highland Drive, Suite D, Ann Arbor, MI, 48108, 734-477-0600 |
Supported Software |
N/A GP-Pro EX |
Weight |
N/A 2.5 kg5.5 lb |
Accessories
Accessories |
N/A
PFXEXEDLS40A, GP-Pro EX HMI Development Software (QUOTE) PFXZCBCLUSA1, USB Clamp Type A (QUOTE) PFXZCBDS101, 10.4-inch Screen Protection Sheet (QUOTE) |
